신제품 출시 | GRAEFF, 스마트 컨트롤러 G100 출시

GRAEFF는 영국에서 제조된 새로운 G100 스마트 컨트롤러 시리즈를 출시했습니다.

G100은 하나 또는 두 개의 설정 가능한 알람과 공정 변수 출력을 위한 선형 재출력(옵션)을 갖춘 범용 압력 또는 온도 입력 스마트 컨트롤러입니다. G100 스마트 컨트롤러는 GRAEFF 고온 용융 압력 센서와 함께 사용할 경우 압출 시스템 애플리케이션에 이상적입니다.

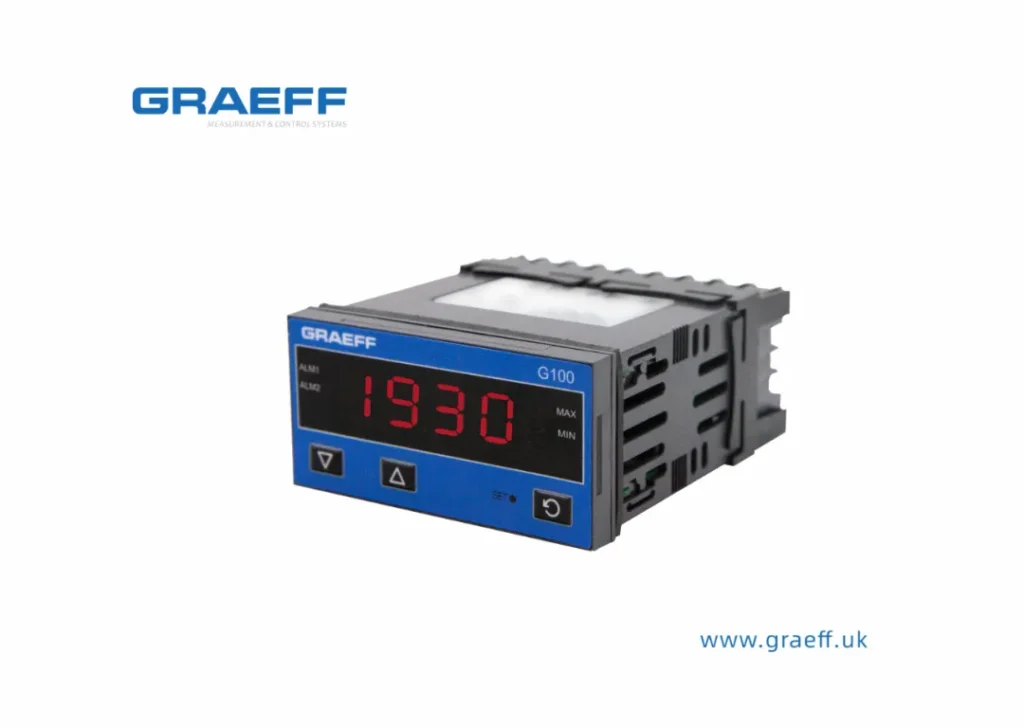

G100 Smart Controller

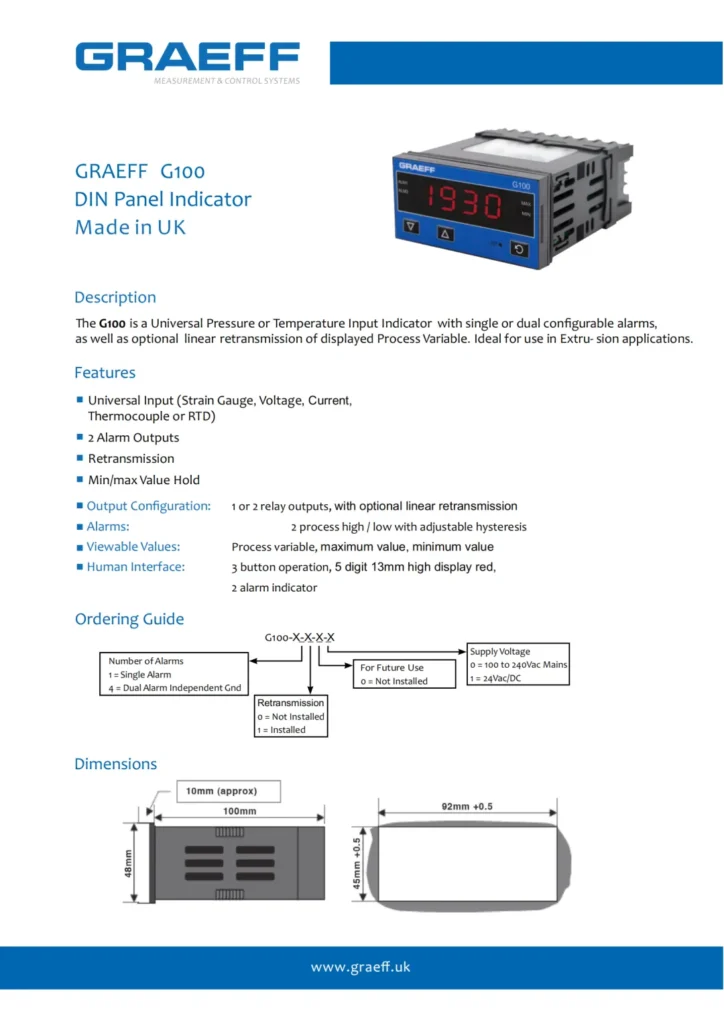

G100 Smart Controller Product Specifications

Output Configuration: 1 or 2 relay outputs with optional linear re-output

Alarms: 2 process high/low alarms with adjustable hysteresis

Display Values: Process variables, minimum value, maximum value

Temperature Units: °C/°F

Human-machine interface: 3 button operation, 4-digit 13mm high display, red, green, or red/green (color changes when an alarm occurs), plus 1 setpoint and 2 alarm indicator lights

Output terminals: 0~20mA, 4~20mA, 0~10V, 2~10V, 0~5V Accuracy: Accuracy of 0.25% and 0.5%

Input Thermocouple: J, K, C, R, S, T, B, L, N

RTD: 3-wire PT100, max 509 per wire (balanced)

Bridge: 4 or 6 wires (6-wire requires internal shunt calibration switch) Bridge Excitation: 10V ±7%

Bridge sensitivity: 1.4–4 mV/V

Input signal range: -25% to +125% of full scale (approximately -10 mV to +50 mV), with the calibration switch between the CAL2 and CAL1 terminals.

Display scalable: 1999 to 9999, with adjustable decimal point

Input impedance: Thermocouple and mV range >10M9, V range 47K9, mA range 59

Accuracy: ±0.1% of input range ±1 LSD (T/C CJC better than 1°C)

Sampling: 4 times per second, approximately 14-bit resolution (250ms sampling time)

About Graeff

Graeff is a British multinational group company specializing in the research and development, production and sales of melt pressure sensors, temperature sensors, industrial sensors, intelligent sensors, intelligent controllers and automation control systems.

Graeff (Jiaxing) Instruments Co., Ltd. (abbreviation: Graeff China) is a wholly-owned subsidiary of European enterprise Graeff Group in China. Graeff focuses on measurement and control in the field of pressure and temperature, and Graeff technology research and development The core members have many years of research experience in the fields of electronics and mechanics. It is an innovator in the field of NTX environmentally friendly mercury-free filled high temperature melt pressure sensors.
